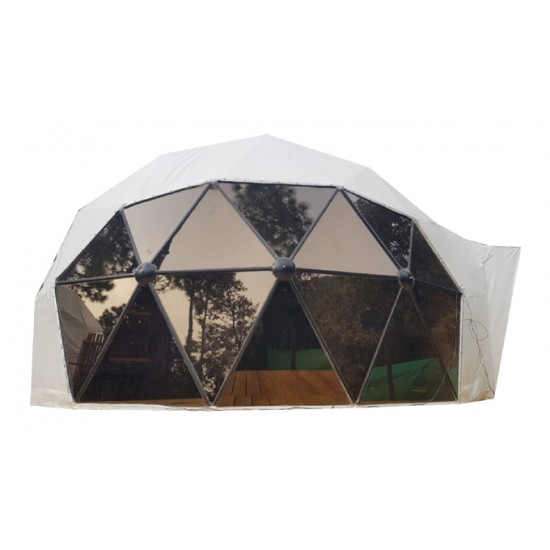

Geodesic Dome 3V with Glass Window

 Geodesic Dome 3V with Glass Window
New Pre-Order
Geodesic Dome 3V with Glass Window
Rs.680,000.00
  • Stock: Pre-Order
  • Model: ZU5495
  • Weight: 460.00kg
  • Dimensions: 610.00cm x 610.00cm x 366.00cm
  • MPN: ZUFLAH

Available Options

Note: in this price the installation is included and transportation charges isn't included and above price based on 5 pieces for less than please contact us.

Material details of Dome

  • Outer Fly: 100% polyester fabric 2 side PVC coated 580GSM waterproof
  • Welding Technology: Outer fly welded by hot air welding technology
  • Inner Fly: 100% polyester fabric macro tvells 2 layers stitched with 175 gram wedding sheet
  • Triangle windows: Made by 100% polyester mash windows with hoad cover No's, 2 as per following sizes
  • 20X20X20 inch
  • 30X30X30 inch
  • View Window: Made by glass 6mm mercury
  • Exhaust fan: two Exhaust fan 10" including 2 pices
  • Frame: Made by MS pipe 18 gauge dia 32mm painted with powder coating

Material details of Toilet

  • Outer Fly: 100% polyester fabric 2 side PVC coated 580GSM waterproof
  • Welding Technology: Outer fly welded by hot air welding technology
  • Inside of Roof: 100% polyester fabric macro tvells 2 layers stitched with 175 gram wedding sheet
  • Inside of Wall: Made by PVC panel Sheet
  • Door: Made by aluminum door wiht frosted glass 6mm Size: 6.3X2ft
  • Exhaust fan: Exhaust fan 8" including 1 pice
  • Frame: Made by MS square pipe 18 gauge 1.25" X 1.25" and Supporting rectangle pipe 20 gauge 1" X 2" painted with powder coated

               Details & Dimensions

Type Dome
No of Doors 1
No of Flies 2
No of Folds Single
No. of Windows 2
Dimensions Inside (dia)
20ft ± 5%
Center Height 12ft
Weight (Kg)
460 (Approx)
